CF-50TAutomatic unpacking machine

CF-50TAutomatic unpacking machine

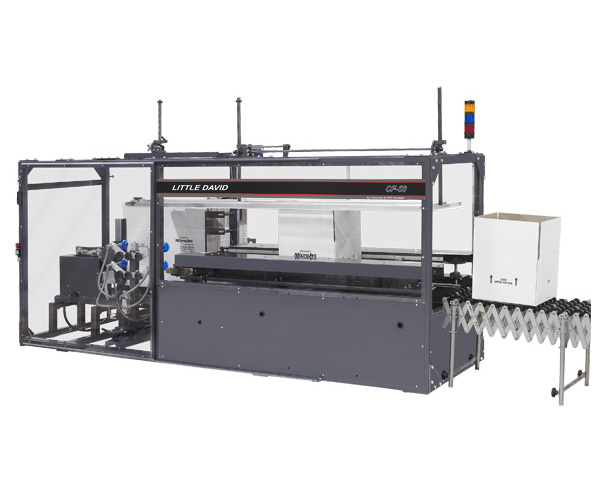

CF-50T automatic open-box machine is designed on the basis of Loveshaw's David's high-performance series of open-box equipment.

This innovative machine is designed to automatically form, fold and seal corrugated boxes at the bottom.

CF-50T folds all kinds of corrugated cartons easily and achieves the speed of 20PCS per minute.

David Jr CF-50T's heavy steel structure design can withstand the harshest industrial environment. CF-50T requires minimal operational training; reduces your operating costs while improving tool conversion capabilities. It makes it easier than ever to switch from one carton size to another.

CF-50T is designed to meet your needs. CF-50T is not only David's highest performance open-box machine, but also the most cost-effective equipment in the current industry.

Open carton size: XL and XXL models are available.

Length: 7 "to 24" (177 mm to 610 mm)

Width: 6 "to 16" (152 mm to 406 mm)

High: 4 "to 20" (102mm to 508mm)

Specifications

Equipment weight: 1000 lbs (453.6 kg)

Production speed: CF-50 production speed can reach 20 cases per minute, but the opening speed depends on the size of cartons and the quality of corrugated cartons.

Standard: 14 cases per minute

Power requirements: single-phase 120V 60Hz or single-phase 220V, 50Hz

Air source requirements: SCFM@80 spi.

Standard unloading height: 231/4 inches (50.7 centimeters).

Tape specifications:

Any qualified brand of tape on the market

Width: 1-1/2 "(38mm) 2" (51mm), 3 "(76mm) optional.

Film diameter: 15 "(381 mm), 3" (76mm) maximum inner diameter.
