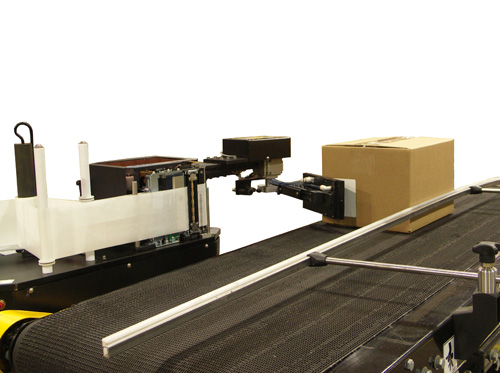

LX-800DTPrinting labeling machine

The features of LX-800DT include:

Simplified control panel and friendly man-machine interface

Easy to read vacuum pressure gauge

Isolation Reverse Band Closing Function: Allow customers to operate without power failure

Simplified settings: no more than 10 minutes from pallet to production

Powerful Industrial Design

UL certification?

Simplified control interface

Isolated Reverse Band Shutdown Function Backup Clearance Without Closing the Whole System

Cast aluminium alloy frames with fewer individual parts

An adjustable size frame that runs printers from all original designers and manufacturers

Customizable labeling head (single/double/continuous labeling)

Installation bracket can adjust machine angle arbitrarily

Printer/labeling machine data:

Standard printer: Sato S84 SE series (Zebra optional)

Label printing speed: up to 16 inches per second

Accuracy: +/-1/32"(+/-79mm) stable product delivery

Product Testing: Photoelectric (Diffusion Approximation)

Label Detection: Photoelectric (Printer)

Printing resolution: 203 dpi, 305 dpi, and 609 DPI

Printing mode: thermal transfer printer (direct heat supply)

Communication interface: RS232C (optional interface)

Bar code symbols: UPC-A, UPC-F, EAN-8, Code 39, Code 128

Interleaved 2/5, UCC/EAN 128, Postnet, 2D

And many other barcodes.

Label specifications:

* The exact size depends on the printer chosen

Label size: Sato and Zebra specifications are as follows

Width: 75 "- 6.6" (19.05mm - 167.64mm)

1 "to 12" (25.4mm-304.8mm) longer than 12"is also available.

Label volume requirements:

Outer diameter: 11-7/8 (301.6mm)

Internal diameter: 3 "(76.2mm)

Optional 4 (101.6mm) for labels over 6 "(152.4mm)
